Chapter 11 Extracting raster fractions and area using a polygon mask
11.1 Problem statement
For this tutorial you will need to load the following packages. Please install if you don’t have them yet.
library(raster)
library(sf)
library(exactextractr)
library(tidyverse)Say you have a raster of habitat suitability for a certain species. You could now be interested, how much suitable habitat lies within certain defined areas. For example we could check weather the species is adequately protected by extracting how much suitable area lies within National Parks or other reserves Additionally we can test, how much suitable (and unsuitable) area lies outside the areas you want to test to have an idea of the potential for further protection, or the danger to the species from e.g. land clearing outside of parks. In the end we additionally want to know which fraction of the total area both suitable and unsuitable habitat occupies with our parks, reserves and outside ares.
11.2 Creating some dummy raster data
First let’s get a raster to play around with:
x <- raster(ncol=100, nrow=100, xmn=-10000, xmx=10000, ymn=-10000, ymx=10000)
res(x)<-100 #make the resolution 100 x 100 meter, so one cell is 1 ha in size
values(x)<-runif(ncell(x)) #populate the raster with random values between 0 - 1
plot(x)

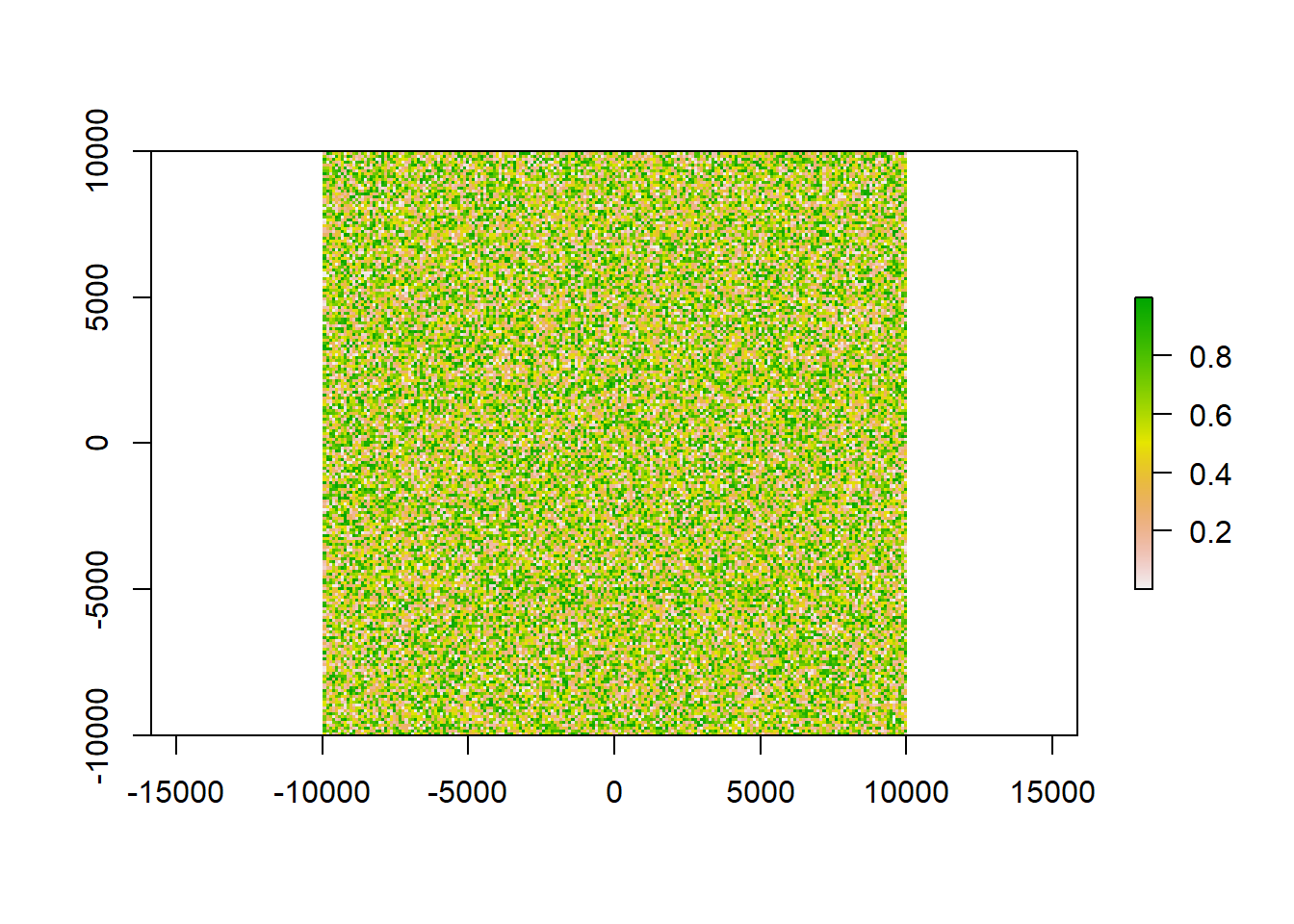

This raster now contains makeshift values of habitat suitability on a percentage scale. Let’s say we found our cutoff point for suitable habitat at 0.5. Any values below this cutoff are then defined as unsuitable for our target species. We can reclassify our raster accordingly:
x_re<-reclassify(x, c(-Inf,0.5,0,
0.5,Inf,1))
plot(x_re)

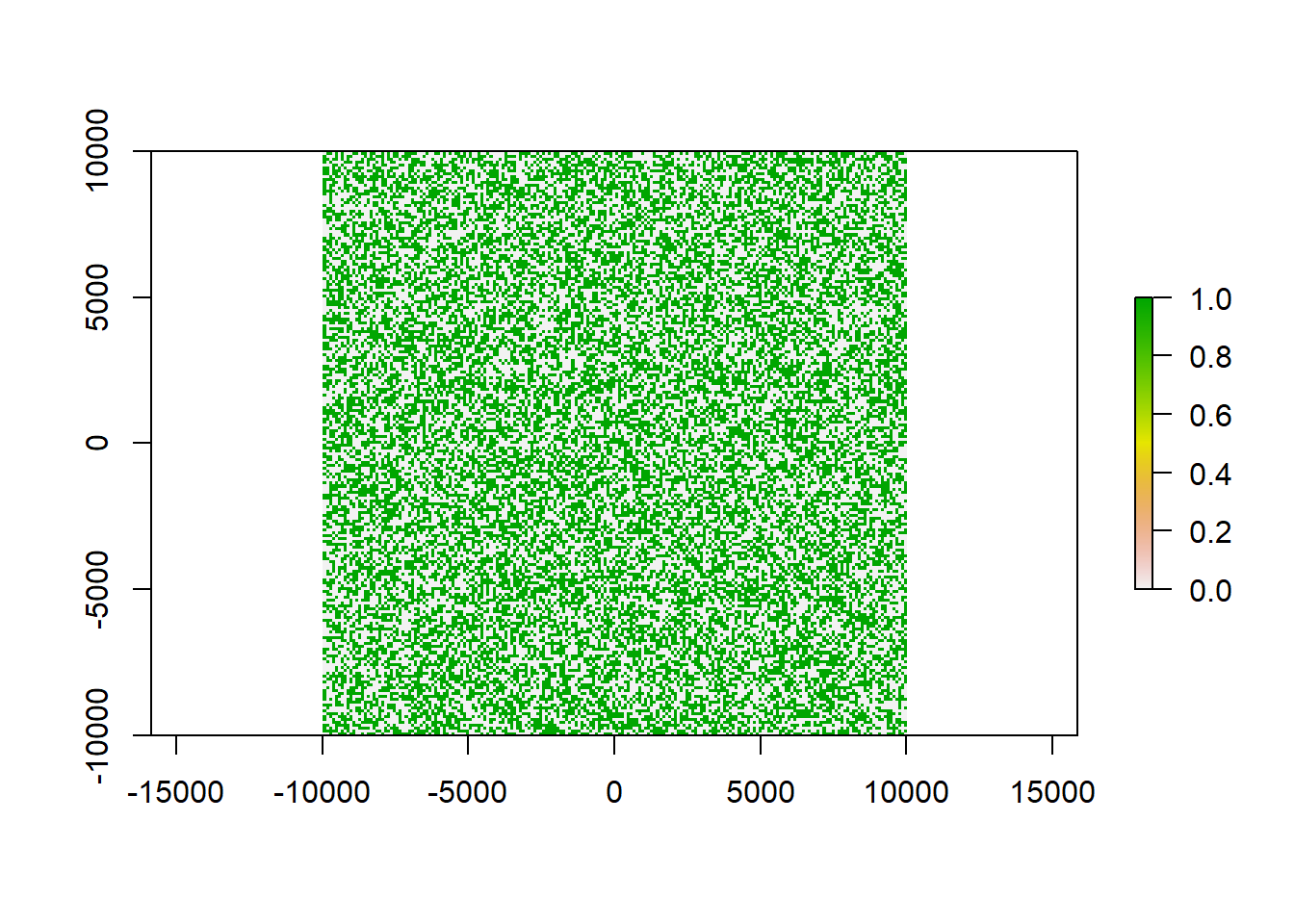

0 now means non suitable and 1 suitable habitat. Since we randomized our values using runif() we have a equal distribution, meaning that 50% of the area is suitable and 50% of the area is unsuitable. This will help us in double-checking our results later but will probably never occur in real life examples.

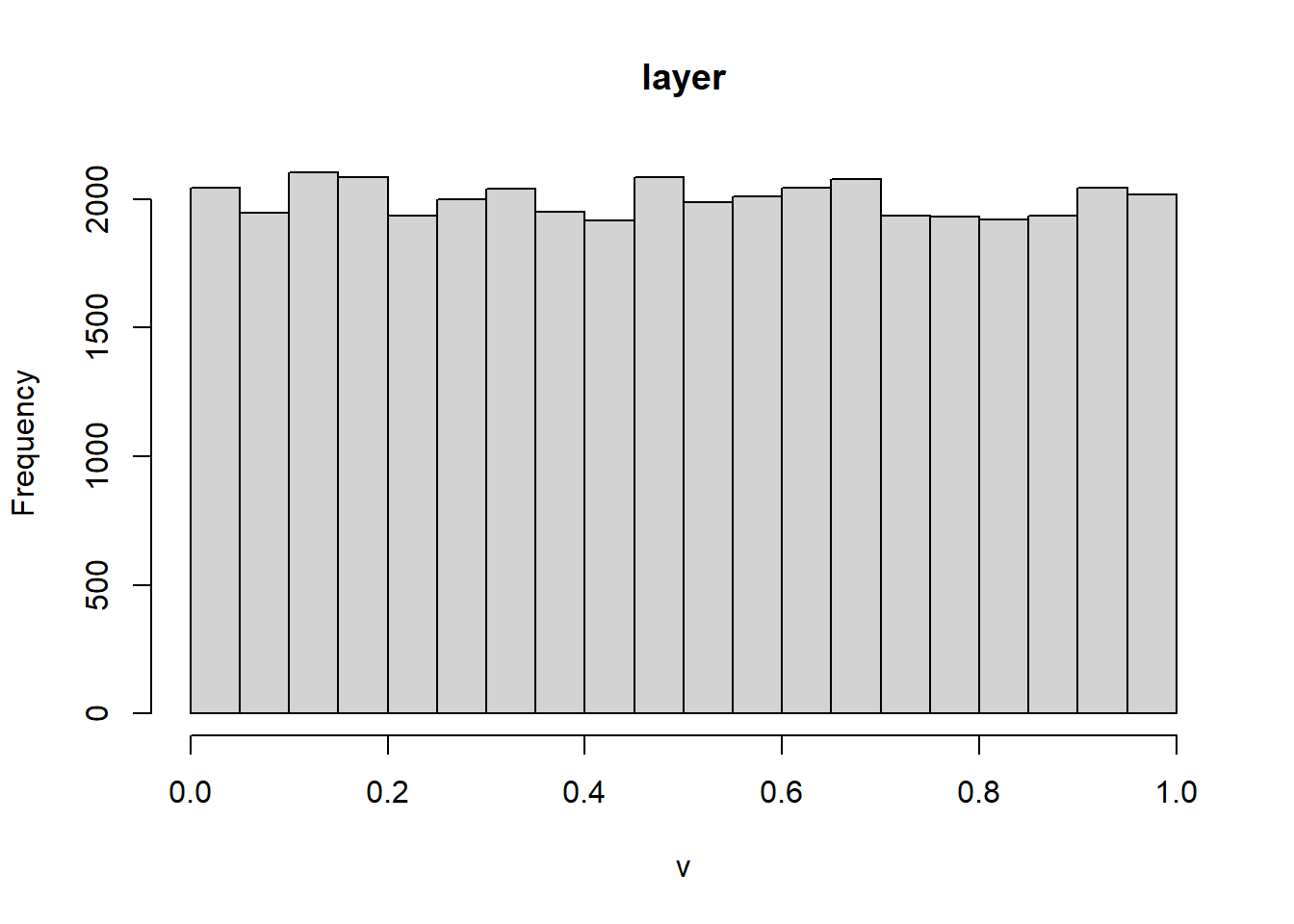

hist(x)

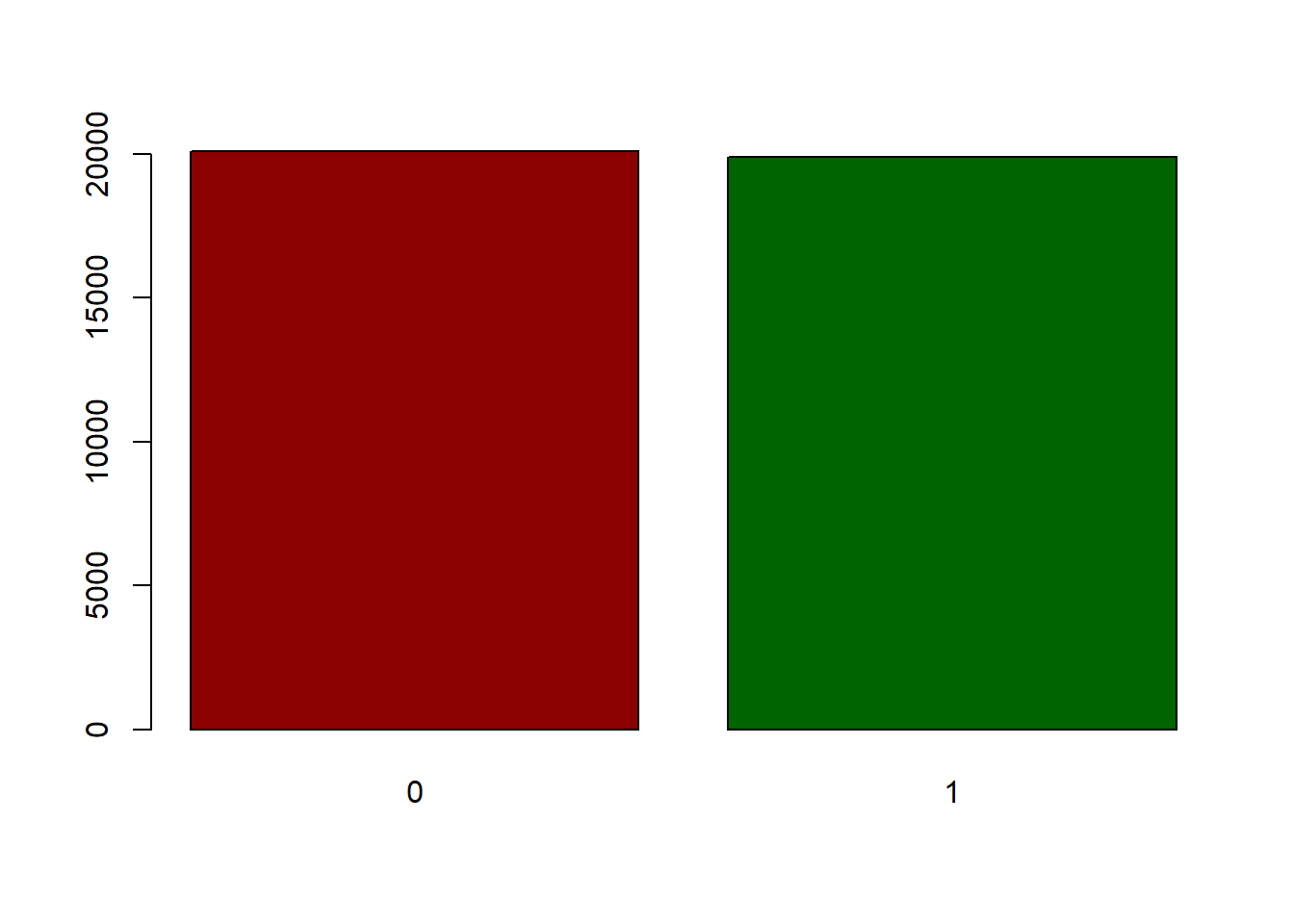

barplot(x_re, col = c('darkred','darkgreen'))
If we wanted to get different probabilities, we could also create our classified raster like this:
x_re2 <- raster(ncol=100, nrow=100, xmn=-10000, xmx=10000, ymn=-10000, ymx=10000)
res(x_re2)<-100
values(x_re2)<-sample(0:1, ncell(x_re), replace = T, prob = c(80,20))
plot(x_re2)

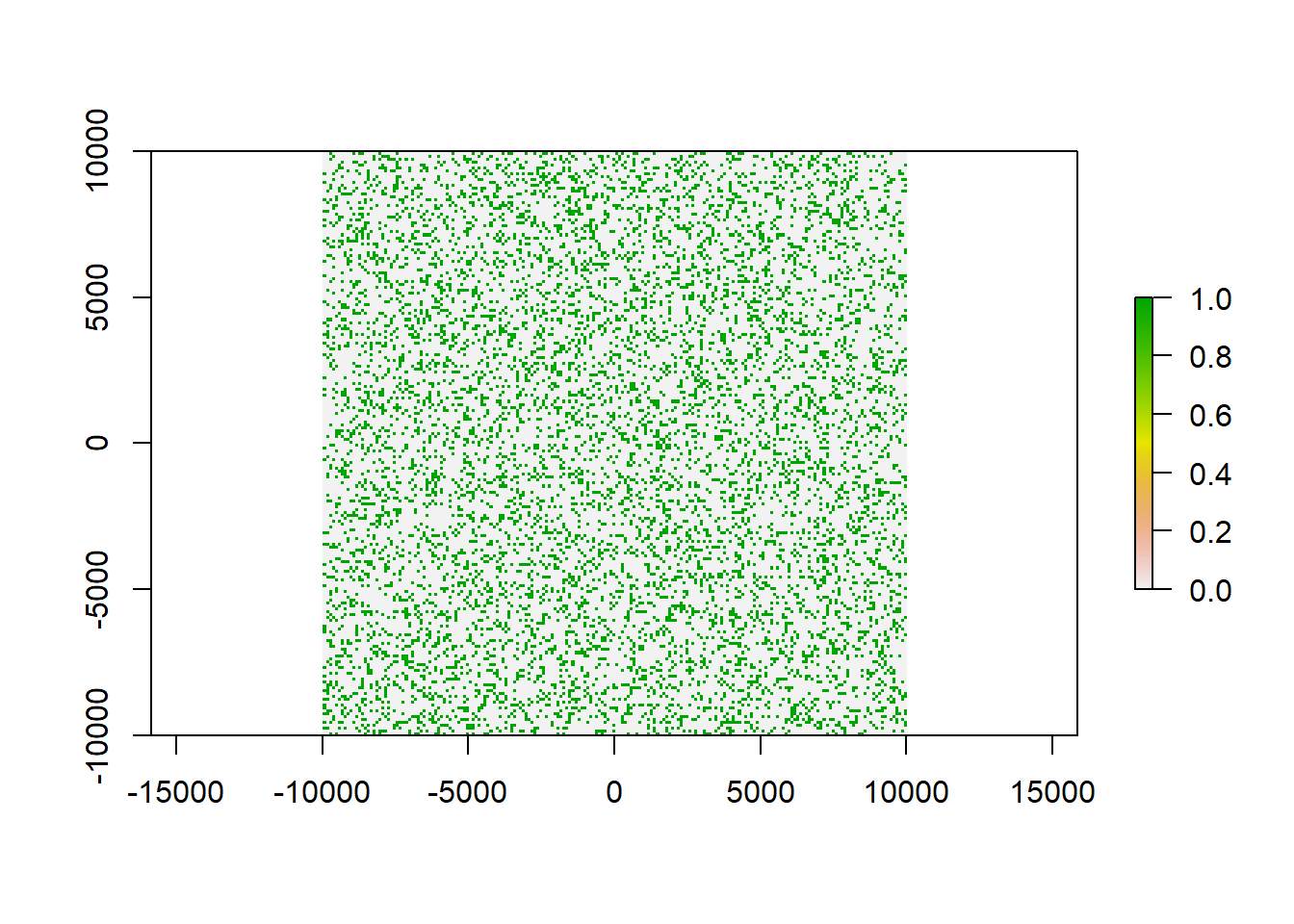

Using sample() with prob = c(80,20), assigns 80% of the area as unsuitable, but still on a normal pattern.
11.3 Create some reserves
We also needs some reserve areas to extract values from.
extent(x_re) #have a look at the extent of our raster to decide for extent of dummy areas## class : Extent
## xmin : -10000
## xmax : 10000
## ymin : -10000
## ymax : 10000#create some extents
a<-extent(c(-1000, 1000, -5233, -2355))
b<-extent(c(-7000, 6530, -400, 4223))
c<-extent(c(-10000, -5427, -10000, -4785))
#transform them into polygons
a_sf<-as(a, 'SpatialPolygons')%>%st_as_sf()%>%mutate(name = 'res1')
b_sf<-as(b, 'SpatialPolygons')%>%st_as_sf()%>%mutate(name = 'res2')
c_sf<-as(c, 'SpatialPolygons')%>%st_as_sf()%>%mutate(name = 'res3')
#get the total area to create our outside areas
all<-as(extent(x_re), 'SpatialPolygons')%>%st_as_sf()%>%mutate(name = 'outside')
plot(x_re)
plot(a_sf$geometry, add = T, lwd = 2, border = 'red')
plot(b_sf$geometry, add = T, lwd = 2, border = 'blue')
plot(c_sf$geometry, add = T, lwd = 2, border = 'orange')

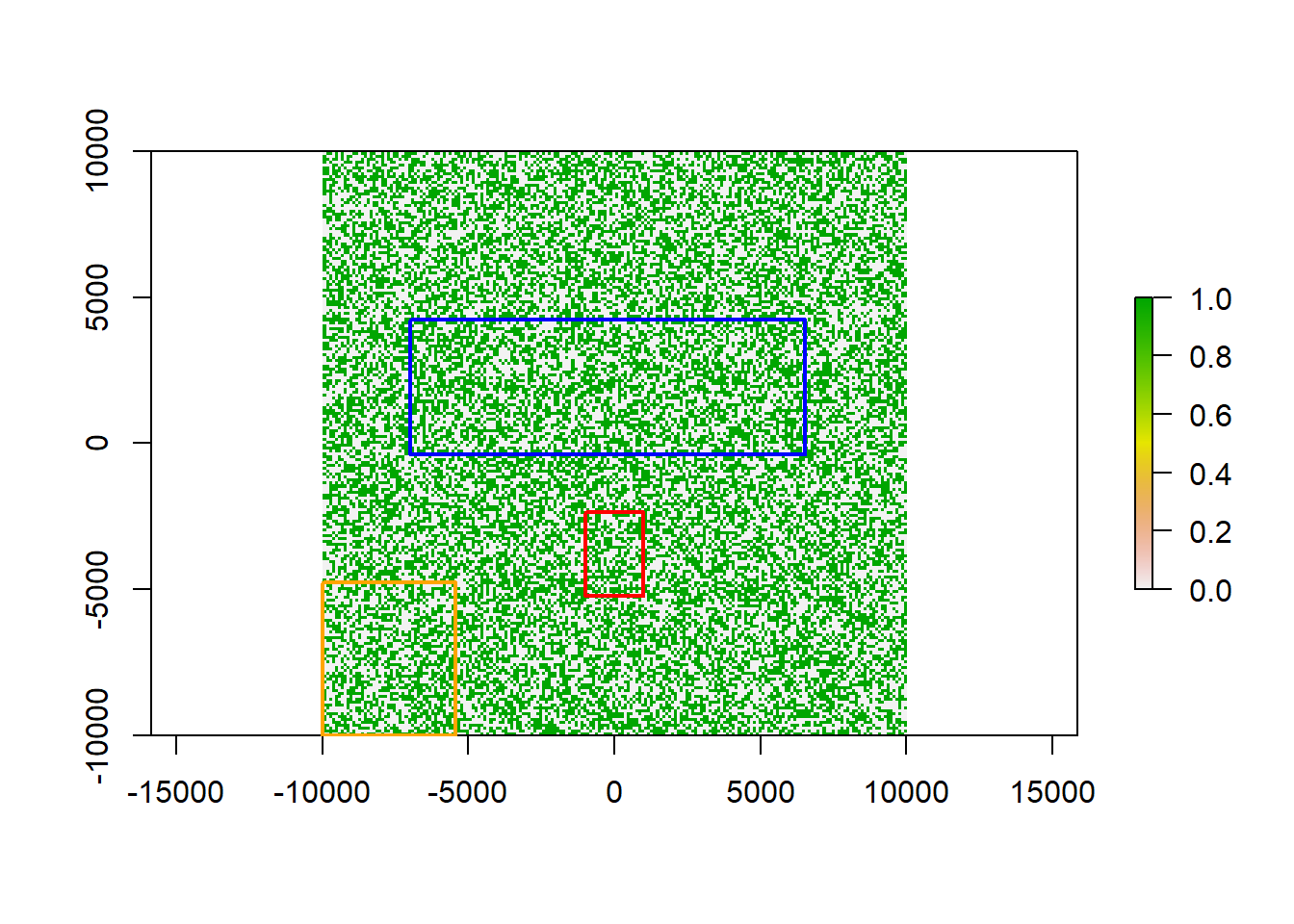

Now we have three areas that we assume to be our reserves. We still need a polygon for all other areas, also we need to combine our polygons into one.
#bind reserves
reserves<-rbind(a_sf, b_sf, c_sf)
#get the outside areas only
outside<-st_difference(all, st_combine(reserves))
#bind all for extraction
all_areas<-rbind(reserves, outside)
plot(x_re)
plot(st_geometry(outside$geometry), border = 'blue', lwd = 4, add = T)
plot(st_geometry(reserves),
border = as.factor(reserves$name), lwd = 3, add =T)

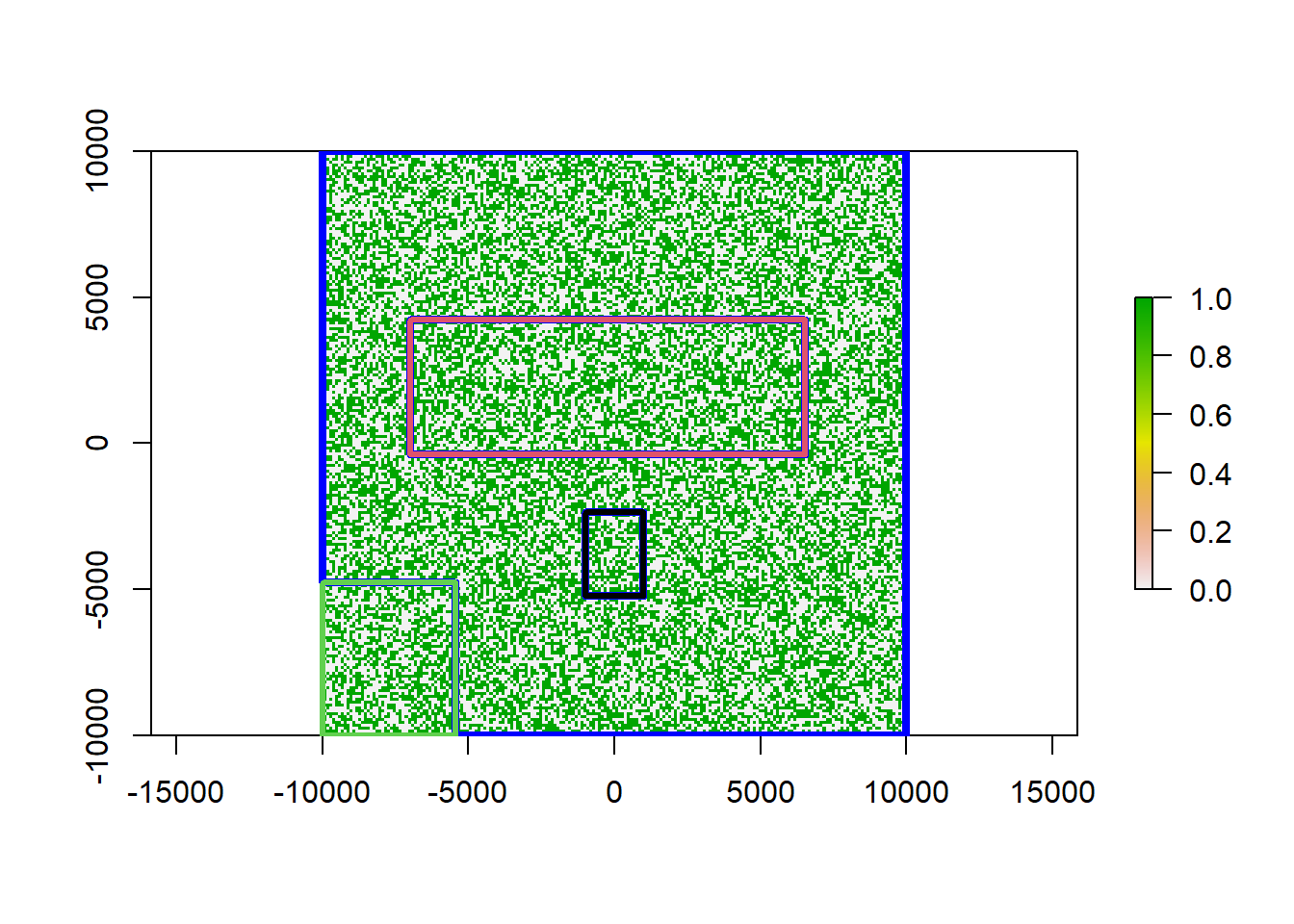

The blue area is all raster area outside of our reserves. Our three reserves are colored in red, black and green.
11.4 Extracting data
To extract the cell data from each polygon, we use exact_extract from the package exactextractr, which is a quicker alternative to raster::extract. It extracts data from each feature separately in parallel and saves the extracted values into a list.
extract<-exact_extract(x_re,all_areas, fun = NULL)##
|
| | 0%
|
|================== | 25%
|
|=================================== | 50%
|
|==================================================== | 75%
|
|======================================================================| 100%for( i in seq_along(extract)){
extract[[i]]$ID <- seq_along(extract)[i]
}In the second step, we assign an ID column to each table in the created list. This will help us in matching the extracted values to the name of the area polygon we extracted from. We convert out list into a table and then add the lc column to assign each value the name of the polygon it belongs to:
extract_table<-dplyr::bind_rows(extract)%>%dplyr::select(-2)
extract_table$lc <- as.factor(all_areas$name[extract_table$ID])
head(extract_table)## value ID lc
## 1 0 1 res1
## 2 1 1 res1
## 3 0 1 res1
## 4 1 1 res1
## 5 0 1 res1
## 6 1 1 res1We can now compile a summary table using dplyr syntax. To calculate the area, we are working with the resolution of the raster and will need to save it as a variable fist.
reso<-res(x_re)[1]
area_habitat<-extract_table%>%group_by(lc, value)%>%
summarise(pixelsum = sum(ID), areaha = (pixelsum*reso^2)/10000)%>%
mutate(sumA = sum(pixelsum), per = 100*pixelsum/sumA)%>%ungroup()%>%
mutate(sum_all = sum(pixelsum), pertotal = 100*pixelsum/sum_all)## `summarise()` regrouping output by 'lc' (override with `.groups` argument)area_habitat## # A tibble: 8 x 8
## lc value pixelsum areaha sumA per sum_all pertotal
## <fct> <dbl> <int> <dbl> <int> <dbl> <int> <dbl>
## 1 outside 0 62148 62148 123560 50.3 144258 43.1
## 2 outside 1 61412 61412 123560 49.7 144258 42.6
## 3 res1 0 290 290 600 48.3 144258 0.201
## 4 res1 1 310 310 600 51.7 144258 0.215
## 5 res2 0 6354 6354 12784 49.7 144258 4.40
## 6 res2 1 6430 6430 12784 50.3 144258 4.46
## 7 res3 0 3759 3759 7314 51.4 144258 2.61
## 8 res3 1 3555 3555 7314 48.6 144258 2.46What happens here is, we group by class (lc which refers to our polygon names) as well as value (0 for unsuitable and 1 for suitable habitat). We then tally all pixels using the ID column and calculate the area in ha from the pixelsum. In our case these match because the resolution is already 1 ha (each cell is 100x100 meters). Furthermore we can then tally all pixels to get the total raster area and from that calculate first the percentage of suitable and unsuitable habitat in each polygon and then (by using ungroup()) the fraction of this area compared to the total raster area.
11.5 Plotting the results
Using ggplot2 we can then plot these results to better visualize them. The code below will work for any table that is in the format of our area_habitat table above, if you follow the steps of this guide.
bar<-ggplot(data = area_habitat, aes(x = reorder(as.factor(lc), -pixelsum), y = per, fill = as.factor(value)))+
geom_bar(stat = 'identity', color = 'black', position=position_fill(), show.legend = FALSE)+
scale_y_continuous(labels = scales::percent)+
geom_text(aes(label=round(per, digits = 1)), check_overlap = TRUE, position=position_fill(),
vjust = 1.2, color = 'black')+
theme_classic()+
theme(axis.title.y = element_text(size = 15, face = 'bold'),
axis.title.x = element_text(size = 15, face = 'bold'),
axis.text.x = element_text(size = 15, face = 'bold'),
axis.text.y = element_text(size = 15, face = 'bold'))+
ggtitle('Whatever this area is')+
xlab('')+
ylab('area percentage')+
scale_x_discrete(labels=c('Outside', 'Reserve 2', 'Reserve 3', 'Reserve 1'))+
scale_fill_manual(values = c('lightgrey', 'darkgreen'), labels = c('unsuitable', 'suitable'), name = '')
bar

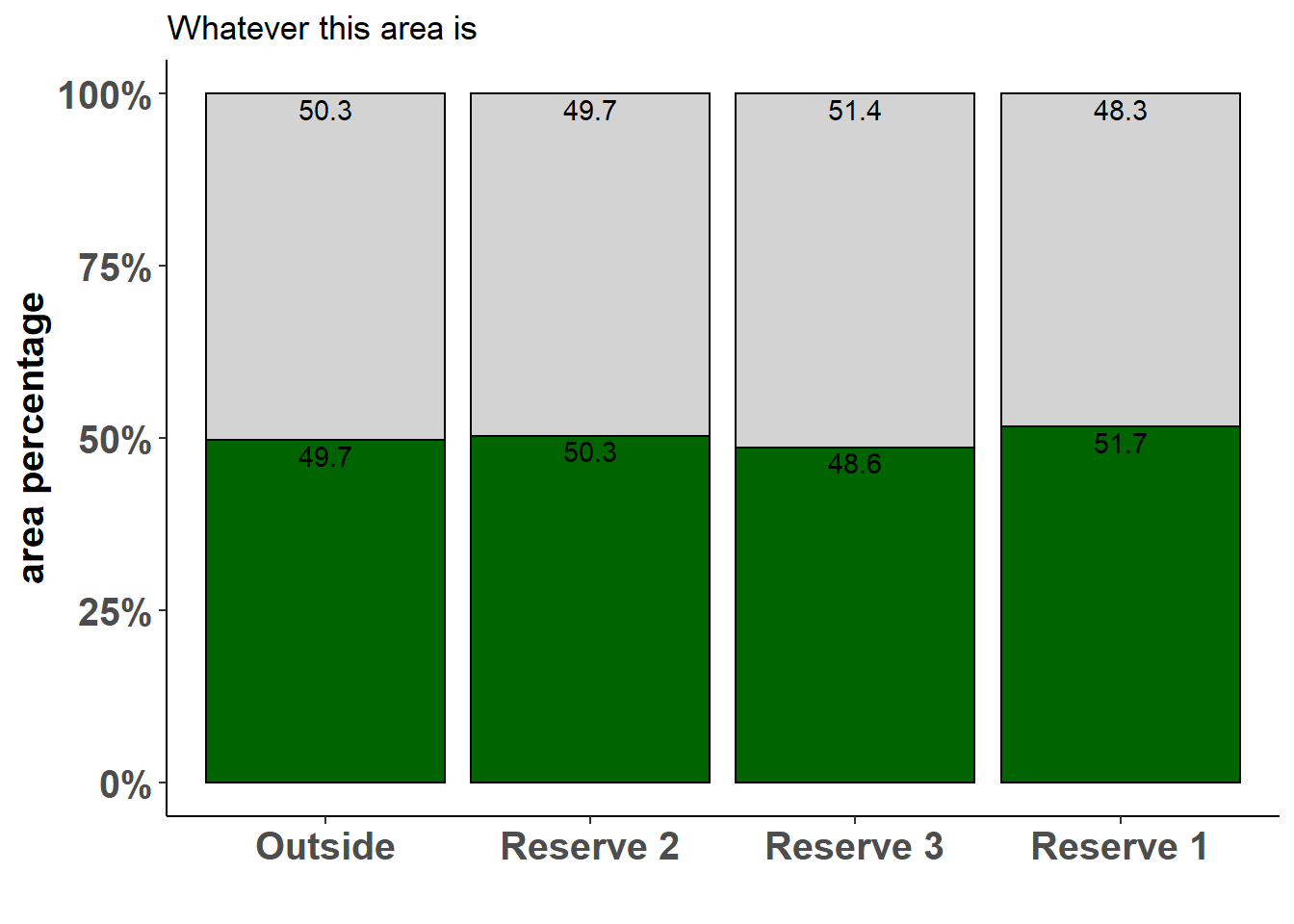

Our plot shows for each area we wanted to test, which fraction is suitable and which unsuitable. As expected, in our example we have about a 50:50 distribution, but this may look quite different in a real-world example.
Hope you can find a useful application for this code! :)
